Liner Pro |

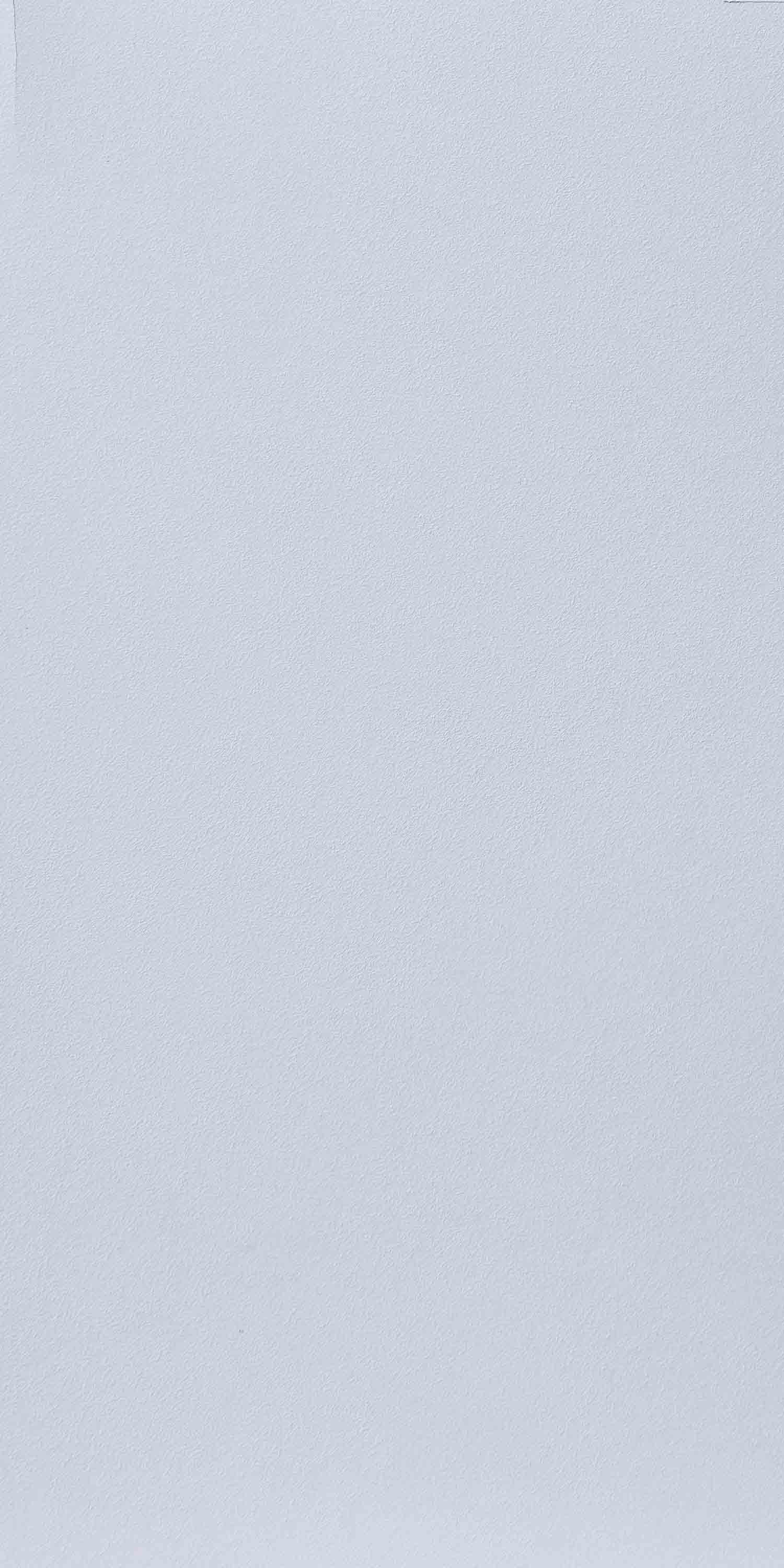

Solids
All the designs are available in: Suede and Matt Finish
| Properties | Specified As Per IS:2046-1995 (1.0 mm) | CenturyLaminates (1.0 mm) | Specified As Per IS:2046-1995 (1.5 mm) | CenturyLaminates (1.5 mm) |
|---|---|---|---|---|
| Thickness | 1.0 mm (± 10%) | 1.0 mm (± 5%) | 1.5 mm (± 10%) | 1.5 mm (± 5%) |
| Resistance To Surface Wear | ≥ 350 (revolutions) | > 400 (revolutions) | ≥ 350 (revolutions) | > 400 (revolutions) |
| Resistance To Immersion In Boiling Water | Mass increase: 10.0% (Max) | 6.0% (Max) | 7.5% (Max) | 5.5% (Max) |
| Thickness increase: 11.8% (Max) | 7.0% (Max) | 8.5% (Max) | 6.0% (Max) | |
| Resistance To Dry Heat At 180°C | Should pass test | Passed | Should pass test | Passed |
| Dimensional Stability At Deviated Temperature | Longitudinal: 0.55% (Max) | 0.35% (Max) | 0.44% (Max) | 0.30% (Max) |
| Transverse: 1.025% (Max) | 0.75% (Max) | 0.86% (Max) | 0.65% (Max) | |
| Dimensional Stability At 20°C | Longitudinal: 0.375% (Max) | 0.275% (Max) | 0.31% (Max) | 0.23% (Max) |
| Transverse: 0.60% (Max) | 0.48% (Max) | 0.49% (Max) | 0.28% (Max) | |
| Resistance To Impact By Small Diameter Ball | 20 N (Min) | 25 N (Min) | 20 N (Min) | 30 N (Min) |
| Resistance To Cracking | Should pass test | Passed | Should pass test | Passed |
| Resistance To Scratching | 2 N (Min) | 3 N (Min) | 2 N (Min) | 3 N (Min) |
