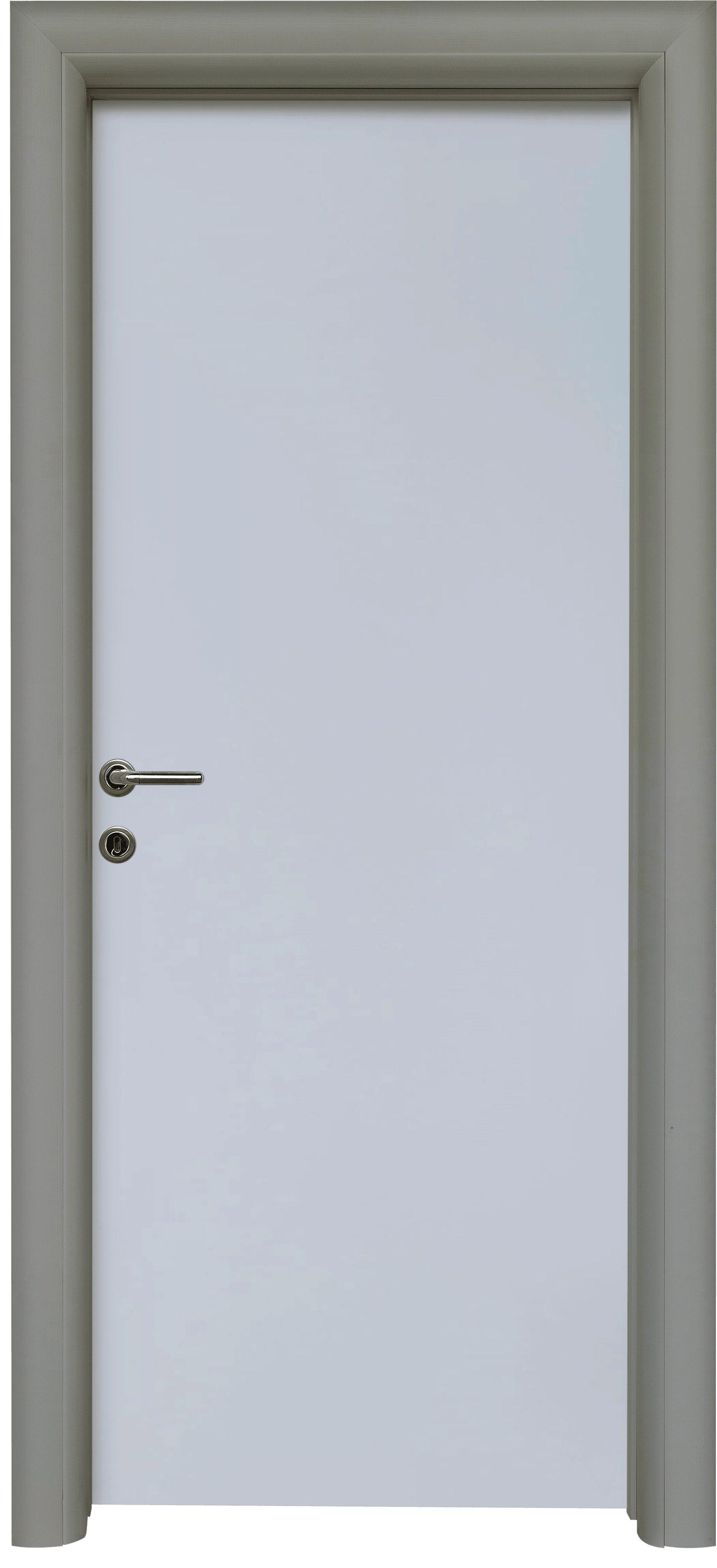

Door Laminates |

Solid Collection

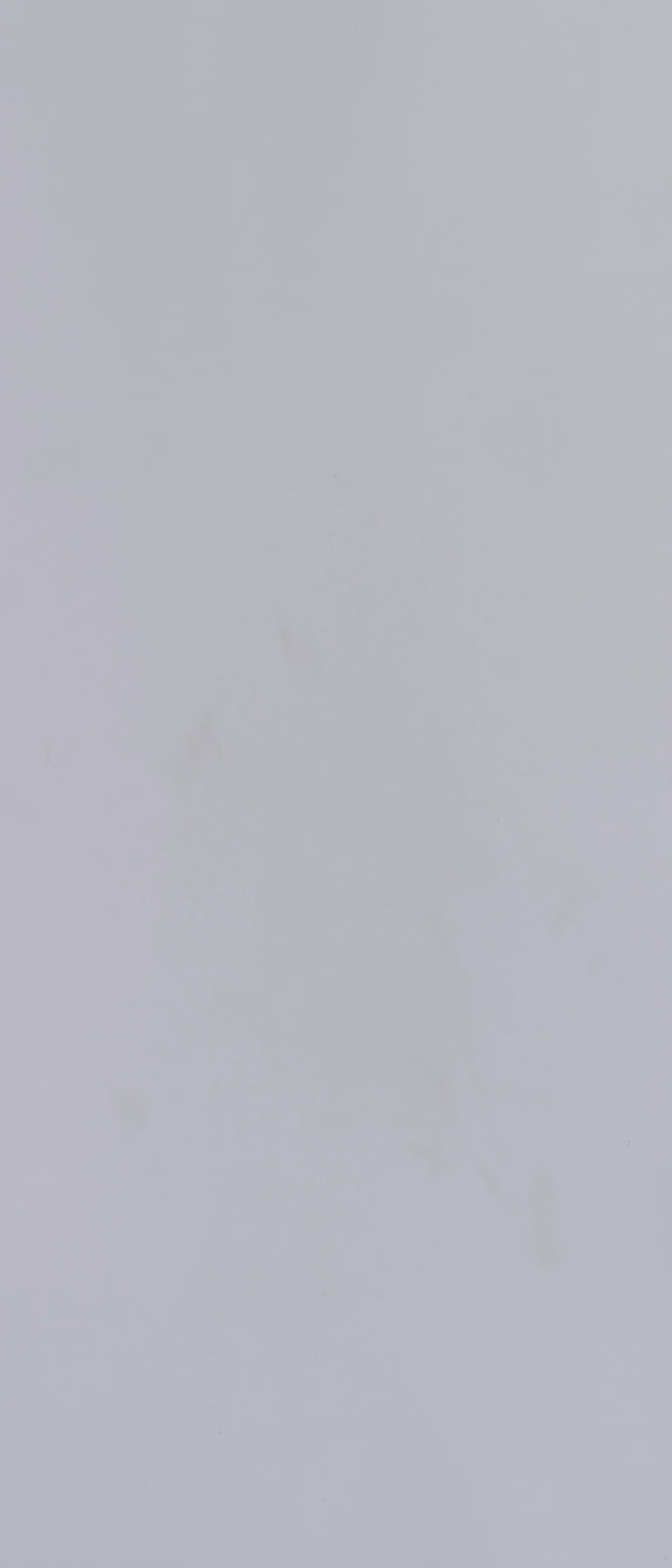

White101 SU

Specifications

Size:

Thickness:

1mm0.8mm

Technical Specifications

Certificates

Sl. No	Properties	Specification as per IS:2046-3 : 2025, HGS	CENTURYLAMINATES 0.8mm	Specification as per IS:2046-3 : 2025, HGS	CENTURYLAMINATES 1.0mm

1	Thickness (mm)	0.80 ± 0.10	0.80 ± 0.05	1.0 ± 0.10	1.0 ± 0.05
2	Resistance to surface wear (Revolutions)	≥350	≥350	≥350	≥400
3	Resistance to immersion in boiling water
	Appearance rating (Min)
	(a) Gloss finish	3	Conforms	3	Conforms
	(b) Other finishes	4	Conforms	4	Conforms
4	Resistance to dry heat at 180°C	Should pass test	Conforms	Should pass test	Conforms
5	Dimensional stability at elevated temperature
5	Lengthwise % (Max.) MD	0.55	0.45	0.55	0.4
	Crosswise % (Max.) CD	1.05	0.85	1.05	0.8
6	Dimensional stability at ambient temperature
6	Lengthwise % (Max.) MD	0.55	0.45	0.55	0.4
	Crosswise % (Max.) CD	1.05	0.85	1.05	0.8
7	Resistance to impact by small diameter ball	20N (Min)	25N (Min)	20N (Min)	25N (Min)
8	Resistance to cracking	Should pass test	Conforms	Should pass test	Conforms
9	Resistance to scratching (force), Rating
9	(a) Smooth finish	2	Conforms	2	Conforms
	(b) Other finishes	3	Conforms	3	Conforms
10	Resistance to staining	Should pass test	Conforms	Should pass test	Conforms
11	Resistance to color change in Xenon	Wool Standard		Wool Standard
11	1. In Xenon light	Should pass test	Conforms	Should pass test	Conforms
12	Resistance to water vapour	Should pass test	Conforms	Should pass test	Conforms
13	Density (gm/cm³) (Min)	1.35	1.35	1.35	1.35
